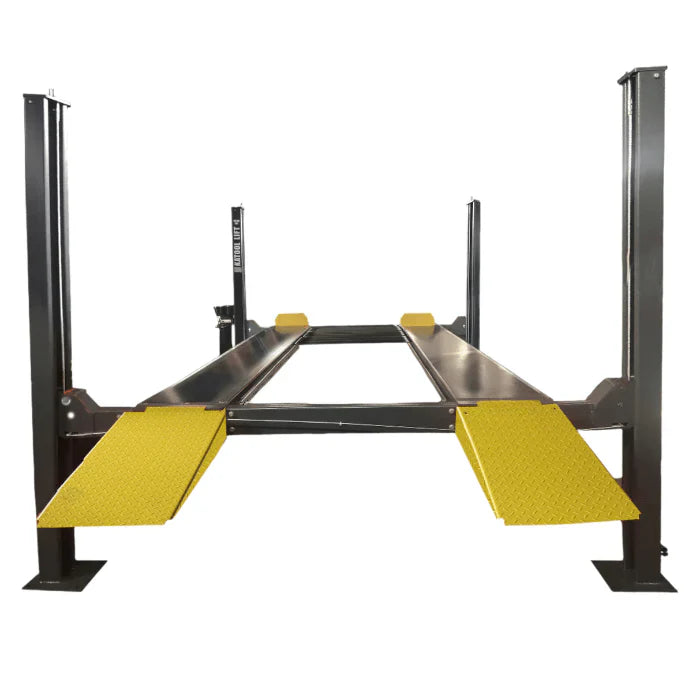

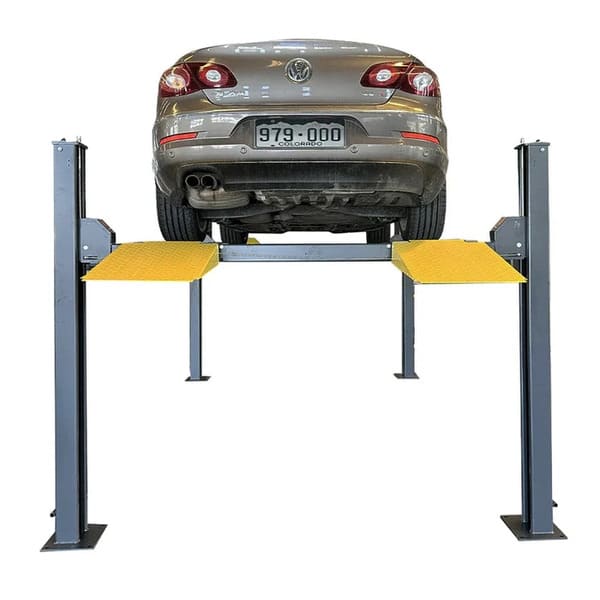

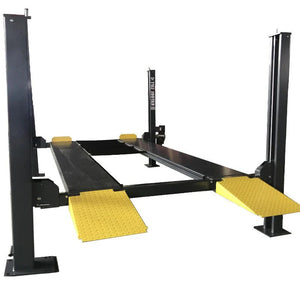

Katool 8500 lbs. Four Post Parking Lift with Casters

Compact 4-Post Car Lift 8500 Lb Capacity

The Katool KT-4H850 four-post car lift is engineered to deliver reliable lifting performance for both professional workshops and high-end home garages. Designed with a focus on safety, efficiency, and space optimization, this lift is ideal for routine maintenance, vehicle storage, and everyday service tasks.

With a lifting capacity of 8,500 lbs (3,850 kg), it easily accommodates most passenger vehicles, SUVs, and light-duty trucks. The maximum lifting height of 180 cm provides comfortable access for undercar inspections, detailing, and repair work, making it a versatile solution for a wide range of applications.

Built for smooth operation, the lift raises vehicles in approximately 75 seconds and lowers in 40 seconds, allowing for efficient workflow without compromising safety. Its robust construction ensures long-term durability, even under regular use.

Safety features are carefully integrated throughout the design. The system includes a single-point manual release mechanism along with four mechanical locking posts, each reinforced with dual safety locks. This ensures secure and stable operation during every stage of lifting.

The non-slip diamond-plate runways provide excellent traction, while adjustable locking positions allow precise height control. Additional included accessories such as a caster kit, drip trays, and a jack tray enhance usability, making this lift suitable for both service and storage purposes.

The lift can be installed as a freestanding unit without anchoring. However, for optimal stability, anchoring is recommended depending on usage conditions.

✓ Includes jack stand or wheel chocks —no extra purchase required. (Contact for more details)
✓ Free Pickup from US Warehouse

Note: To arrange a warehouse pickup, simply contact our live chat and we’ll guide you to the nearest location using your ZIP code.

Key Features

• 8,500 lb lifting capacity for cars, SUVs, and light trucks
• Stable four-post structure for secure lifting and storage
• Advanced safety system with dual-locking mechanisms
• Single-point manual release for simple operation
• Non-slip diamond-plate runways for improved traction
• Adjustable lock positions for precise height control
• Smooth lifting and lowering cycles for efficient workflow
• Includes caster kit, drip trays, and jack tray for added versatility

Installation Requirements

Concrete surface must meet the following minimum standards:

• Thickness: at least 10 cm (100 mm)
• Strength: minimum 3,000 PSI

Improper installation may result in safety risks or equipment damage. It is the buyer’s responsibility to ensure that all floor conditions meet the required specifications prior to installation.

Specifications

• Lifting capacity: 8,500 lbs (3,850 kg)
• Maximum lifting height: 180 cm
• Lifting time: 75 seconds up / 40 seconds down
• Post height: 212.5 cm
• Overall width: 274.2 cm
• Width between columns: 240.6 cm
• Runway width (inside): 94 cm
• Overall length (without ramps): 437 cm
• Overall length (with ramps): 504 cm
• Minimum runway height: 12.1 cm
• Lock positions: every 12 cm (12 levels)
• Cable thickness: 3/8"
• Motor: 110V or 220V / 60Hz / single phase
• Electrical requirement: 10-gauge wiring with 30-amp breaker
• Net weight: 826 kg
• Shipping dimensions: 424 cm × 58 cm × 76 cm

Warranty Information

• 1-Year Limited Warranty on all parts and product defects

• 3-Year Structural Warranty on vehicle lift components
